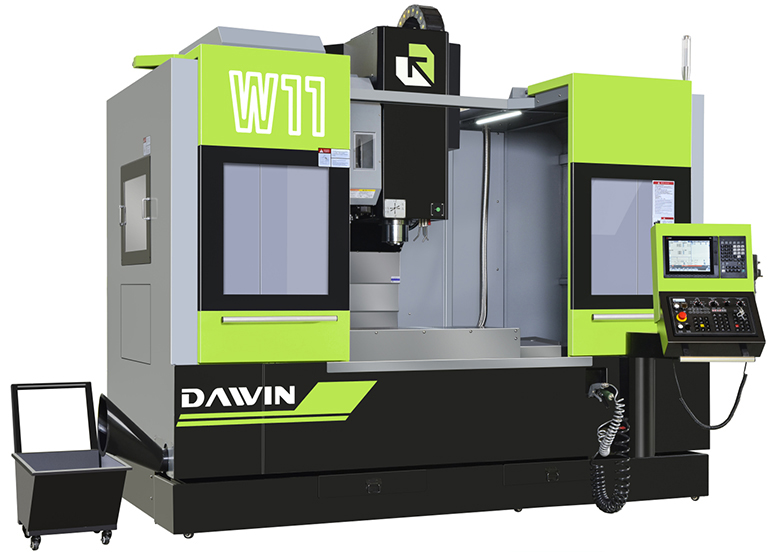

Mechanical features:
? The optimal bed structure is designed to withstand the inertia generated by high G. It is rock solid and stable.
? The castings are treated with secondary tempering and long time natural aging treatment to ensure the stability of the castings and not easy to deform.
? Strictly in accordance with the Japanese assembly process standards, in pursuit of higher mechanical precision.
? Strictly in accordance with the Japanese assembly process standards, in pursuit of higher mechanical precision.
? Three-axis precision ball screws with small pitches are used to ensure high dynamic responsiveness.
?Standard with fully enclosed tool magazine, high stability tool changer system, fast tool change speed and higher stability.
? Adopting reasonable chip removal mechanism, it is convenient to clean up the waste chips and not easy to leak oil.
? Customised spindles for different machining requirements.
| Machine Specification | Unit | W11 |
TRAVEL | ||
X-axis | mm | 1120 |
Y-axis | mm | 620 |
Z-axis | mm | 620 |
Spindle noes to Table | mm | 111-730 |
Distance between spindle center & to column slideway | mm | 670 |
SPAN | ||
X-axis span/width | mm | 420/45 |
Y-axis span/width | mm | 800/45 |
Z-axis span/width | mm | 435/45 |
SCREW | ||
X/Y/Z size | mm | Φ40 |
Pitch | mm | 12 |
TABLE | ||
Size | mm | 1220*600 |
T-slot（widthxnoxdistance） | mm | 18*5*100 |
Max. table load | kgs | 800 |
SPINDLE | ||
Spindle speed | rpm | 12000 |
Transmisson of spindle | type | Gear Box spindle |
Spindle motor | kw | 11/15 |
X/Y/Z axis servomotor | kw | 3.0/3.0/3.0 |
Spindle nose taper | type | BBT40 |
Braring diameter at front first of spindle | mm | 70 |
FEED RATE | ||
Rapid feed rate of X/Y/Z | m/min | 36/36/36 |
Cutting feed rate | m/min | 1-10 |
ATC | ||
ATC Type | Arm type | |
Tool capaticy | pcs | 24 |
Max. tool weight | kgs | 7.5 |
Max. knife length | mm | 300 |
Max. tool diameter | mm | 80/140 |
Recipocating time/tool change time | sec | 2 |
MISCEL LANEOUS | ||
Air source | kgs/cm2 | 6 |
Occupied space(LxWxH) | mm | 3080/2540/3240 |
Machine weight | kgs | 6500 |
Spindle Coolant | Manual Handle Box | Air Blower for Spindle Nose | Oil Skimmer |
Arm Type Tool Changer | Heat Exchange in Control Box | Leveling Brock | Transformer |
BED Shower | Spindle air blast system | llluminating Lamp | Pneumatic Gun |
Automatic lubrication unit | Full splashguard | Three SignalL amp | Shower Gun |
Rigid tapping | Coolant Tank and Chip Bucket | Tool box | Operating instruction |
Automatic Tool Length Measurement | Automatic Tool Break detection | Belt-type Spindle BT40/8000rpm | Disk-type Oil Skimmer |
XYZ linear scale | Automatic Chip Conveyor | Direct Drive Spindle BBT40/1 5000rpm | Automatic Power - off (M30) |
Application of through- spindle | 4th axis NC rotary table | ZF Gear Box Spindle BT 50/6000rpm | Thermal Compensation |
Voltage Regulator | Oil Mist Collector | Built-in Spindle 24000/30000rpm |
